Solar LED Light Tower
video

Solar LED Light Tower

Product dimensions: 2200mm x 1600mm x 2300mm (excluding tow ball)
Towing device length: 95mm
Main body length: 1800mm
Axle spacing: 1450mm
MPPT controller: 60A
Charging time: 9.3hours
Discharging time: 38hours
Battery capacity: 4 x 200AH / DC24V 19200Wh
Battery system voltage: 1.5kW / 1.5kVA / AC220V / 110V
Battery Type: LiFePO4 (Lithium Iron Phosphate) battery
Solar panel: 3 x 460W Monocrystalline silicon
Lighting type: 4 x 100W LED lighting
Add: 1 x European version 4G wireless dome camera (4-inch dome)
Send Inquiry
Product Introduction

Solar Tower Light, 19200Wh LiFePO4, Integrated 4G Camera | Professional Outdoor Lighting Solution Provider | Bright Max



Product Description

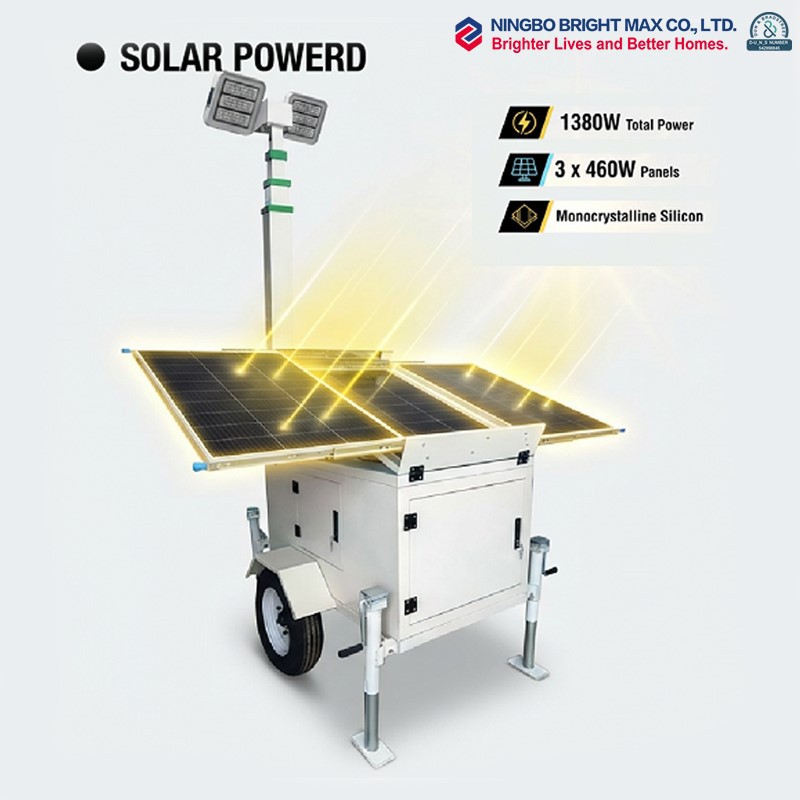

This Solar LED Light Tower is a standalone off-grid lighting system integrating high-efficiency generation, massive energy storage, and intelligent monitoring. The system comprises 3x460W monocrystalline solar panels, 4x200Ah LiFePO4 batteries (19.2kWh total), and 4x100W LED lights, delivering up to 38 hours of continuous illumination. With an integrated MPPT controller and a European version 4G wireless dome camera, it is designed for job sites, mines, large events, and post-disaster emergencies without grid power, offering a safe, efficient, and zero-emission lighting solution.



Product Parameters & Advantages
  • 3x460W Monocrystalline Solar Panels + MPPT Controller: Sufficient daily generation paired with a high-efficiency 60A MPPT controller maximizes solar conversion. Fully charges in approx. 9.3 hours under good sun, drastically reducing reliance on fuel generators for zero fuel consumption and low-carbon operation.
  • 4x200Ah LiFePO4 Battery System (19.2kWh): Massive lithium storage provides extended runtime assurance (theoretically 38 hours), meeting backup needs across multiple cloudy days. LiFePO4 batteries are inherently safe, stable, and have a long cycle life, far surpassing traditional lead-acid batteries.
  • 4x100W High-Power LED Lighting: 400W total LED output delivers exceptional luminous flux and wide coverage, providing bright, uniform lighting comparable to grid power for large work areas or venues, significantly enhancing nighttime safety and productivity.
  • Integrated 4G Wireless HD Dome Camera: The built-in camera enables remote real-time site viewing, achieving integrated lighting and security, especially valuable for monitoring remote sites or storage areas.
  • Trailer-Mounted Mobile Design: Standard trailer design allows easy towing by vehicles like pick-up trucks, enabling flexible and rapid deployment to relocate as project phases or event needs change.
1
Application Scenarios
2
  • Large-Scale Construction & Mining Night Operations:

At remote highway/railway sites or open-pit mines, grid connection is difficult and costly. This Solar LED Light Tower can be quickly deployed to the work front. Solar panels charge the batteries by day; at night, four 100W LED lights illuminate the area like daylight, ensuring safe, continuous excavation, pouring, and hauling. Its massive battery capacity supports high-intensity lighting all night, even through several cloudy days, acting as a "mobile power station" and "artificial sun" to keep projects on schedule.

  • Sporting Events & Large Outdoor Event Support:

Temporary power for night games, festivals, or fairs is a major challenge. This Solar LED Light Tower can be towed to perimeter areas. It reliably illuminates parking lots, access routes, and facilities. The integrated 4G camera aids crowd monitoring and security management. Its silent, emission-free operation makes it ideal for environmentally conscious events, enhancing both safety and image.

  • Disaster Relief & Emergency Command Center Lighting:

When earthquakes or floods cripple the power grid, reliable lighting is a lifeline for rescue efforts. This Solar LED Light Tower can swiftly reach disaster zones. Its powerful off-grid capability immediately provides days of continuous light for temporary medical points, supply distribution, or command centers. The camera feeds real-time footage to aid decision-making. Its self-sufficiency avoids fuel shortages common in early stages, making it critical high-end equipment for emergency response systems.

FAQ



Q1: How is power ensured during consecutive cloudy/rainy days?

A1: The standard 19.2kWh battery provides ~38 hours of runtime for lighting alone when full. We offer configuration advice based on historical weather data and can provide an optional backup fuel generator for extreme conditions.



Q2: Does it support remote control and status monitoring?

A2: Yes, via the integrated 4G module and companion software platform, you can remotely control lights (on/off/dim), check battery level, solar charging status, and view camera footage for intelligent management.



Q3: Are special licenses required for transportation and deployment?

A3: Designed as a light trailer, it can be legally towed in most regions with a standard car license and a vehicle rated for towing. Deployment simply involves leveling the jacks and extending the mast.



Q4: Do you offer customization, like different voltages or higher power?

A4: Absolutely. As a solution provider, we can customize battery voltage, AC output power (e.g., for 110V markets), mast height, solar panel wattage, etc., based on your specific application to offer the most suitable configuration.
